Bediening
You can control the Yesncer All Season radiator in several ways: via the display on the radiator, the remote control and the SmartLife app.

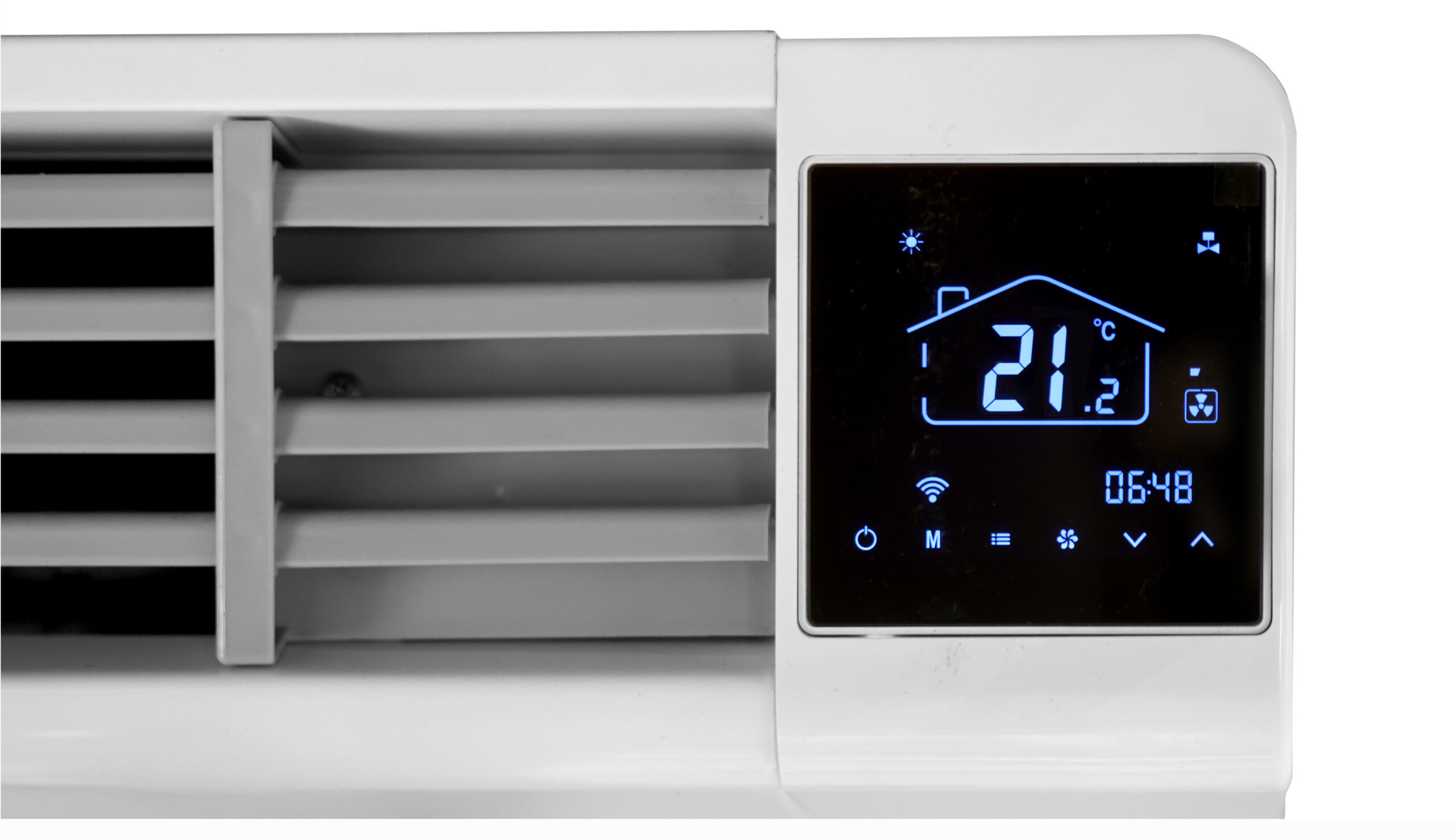

Display
Modi
Timer
Remote control
SmartLife App

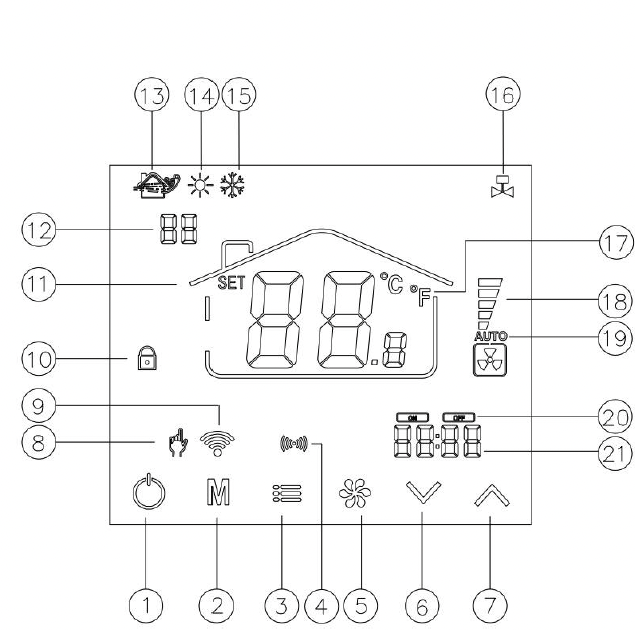

Tip toets display All Season Radiator
- 1 On/Off button
- 2Switch between modes (summer / winter – icons 13/14/15)
- 3Set timer
4(reserved / not used) - 5 Set fan speed (1 to 5 or automatic)
We recommend the “automatic” setting for optimal comfort and low noise levels.
6Lower temperature
- 7Raise temperature
- 8Manual control active
- 9Wi-Fi signal
• Steady icon = connected
• Flashing icon = no connection10Child lock (can be unlocked via the SmartLife app)
- 9Wi-Fi signal
- 11Temperature display• Steady = current room temperature
• Flashing = set temperature - 12Error message (error code))
- 13Fan mode (air circulation only)
- 14Heating mode
- 15Cooling mode
- 16Water valve open/closed indicator
- 17(reserved / not used)
- 18Fan speed indicator
- 19Automatic fan mode
- 20Timer active (on/off indicator)
- 21Time display (automatic via app)
Summer/Winter setting
Display
Heat pump supplies hot water → Radiator heats
Modes
Heat pump supplies cold water → radiator cools
Important:
All radiators and the heat pump must be set to the same mode (all heating or all cooling).
Incorrect example: If the heat pump is supplying hot water and the radiator is set to cool (e.g., 17°C), the radiator will continue to release heat → the room will actually get warmerr.
Fan speed
We recommend always setting the fan to automatic.
The radiator will then adjust the speed automatically based on the temperature difference.
Turn off the fan
- If a space is not being used:
- Turn off the radiator using the on/off switch
- Or unplug it from the outlet
- Also turn off the water valve on the radiator
Set the timer
- To set the timer, follow these steps:
- Briefly press icon 3 (timer), release it briefly, and then hold it down immediately afterward
- “OFF” starts flashing (set the off timer)
- Set the hours using + (icon 7) or – (icon 6)
- Press icon 3 to set the minutes
- Set the minutes using + or –
- Press icon 3 again → “ON” starts flashing
- Set the start time (hours + minutes)
- Press icon 3 to save
To adjust the timer: follow the same steps again.
To adjust the timer, follow the same procedure.
Turn off the timer
The timer can only be turned off by resetting it:
- Press and hold both at the same time
- icon 1 (on/off)
- icon 5 (fan)
Tot het display knippert.

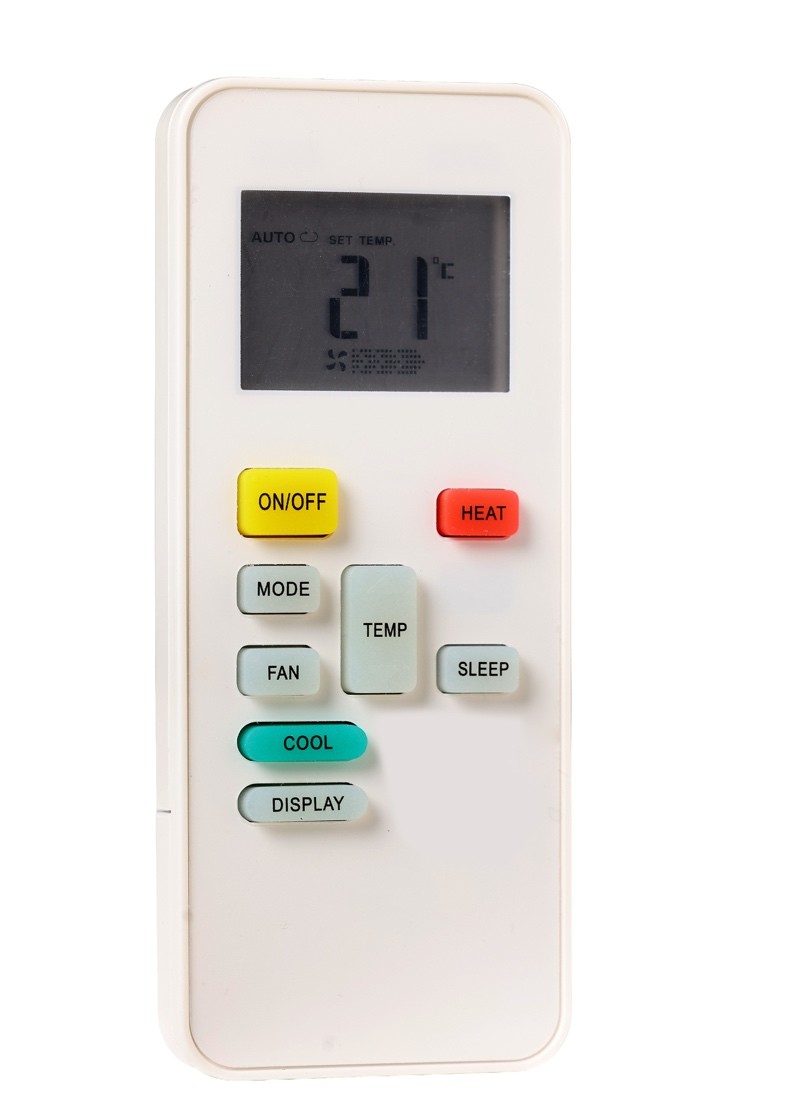

Remote control
- With the remote control, you can:
- Set the temperature
- Adjust fan speed
- Switching between heating and cooling
Please note: The remote control only works when held close to the radiator, so that not all radiators are controlled at the same time.
Features:
On/Off → Turn radiator on/off
Heat → Heat
Cool → Cool
Mode → Switch between modes
Fan → Fan speed
Display → Turn display on/off
Temp ▲ / ▼ → Adjust temperature
Sleep → Sleep mode
The remote control has limited functionality. For full control, use the display or the app.
Mobile App User Guide
Full control over your radiators via your smartphone.
1

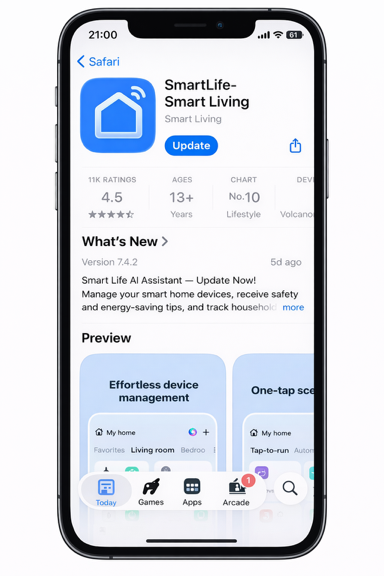

Install the app
Install the app from the App Store or Google Play
2

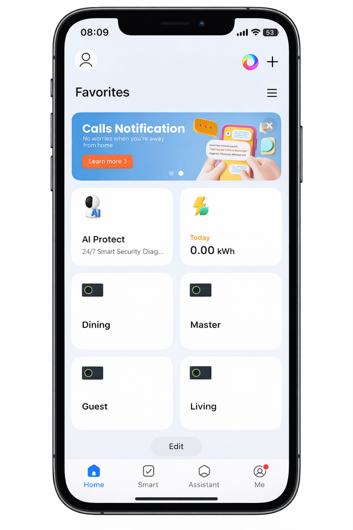

Open the app
Rooms, Energy consumption
( Home, Smart, Assistant, Me )
3

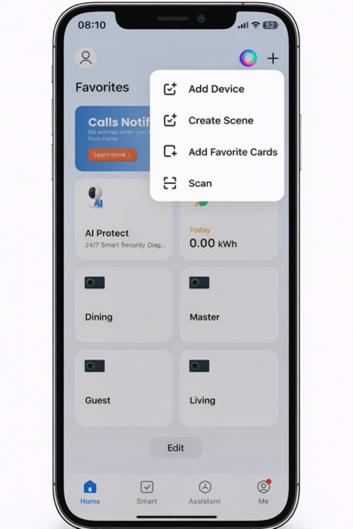

Add device
Click the + icon in the top-right corner, then select Add Device
4

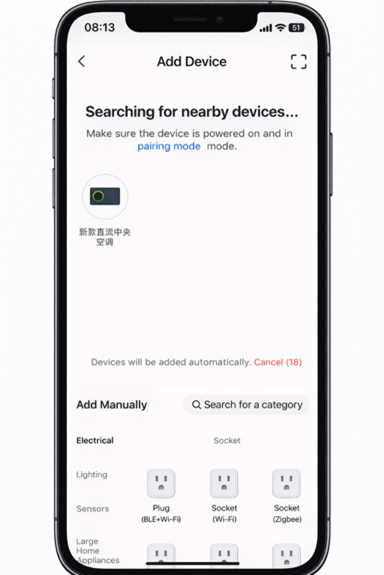

Pair device
Zorg dat de radiator aan staat, Zet deze in pairing mode, De app vindt het apparaat automatisch
5

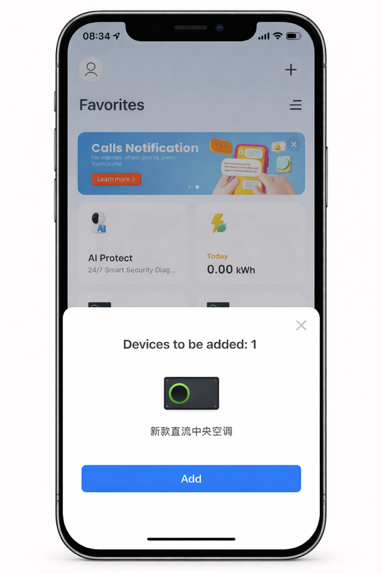

Secure the device
Click Add
6

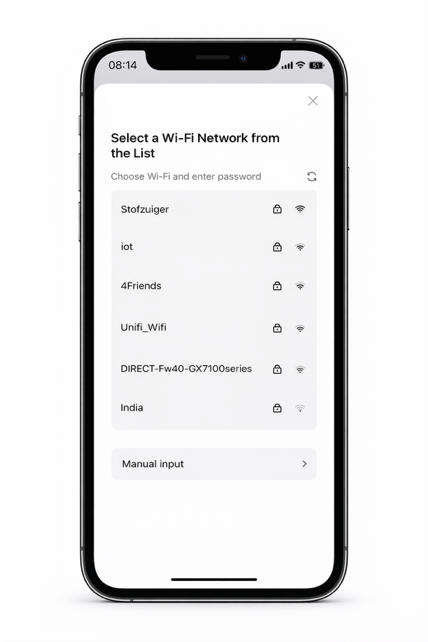

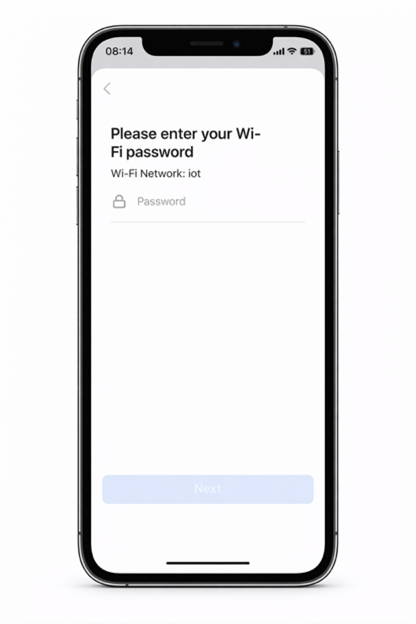

Set up Wi-Fi
Select your network, enter your password, click Next
Important: 2.4 GHz Wi-Fi only; preferably use a separate IoT network
7

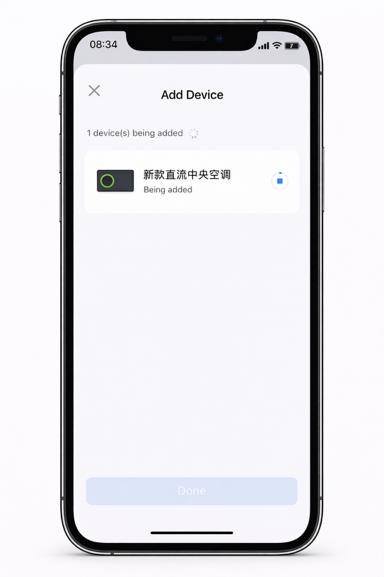

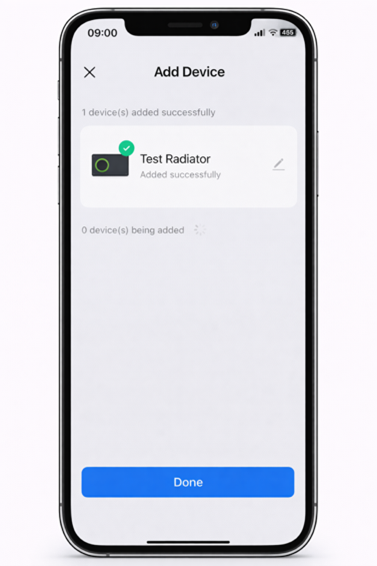

Device is being added
Wait until the installation is complete, then click Done
8

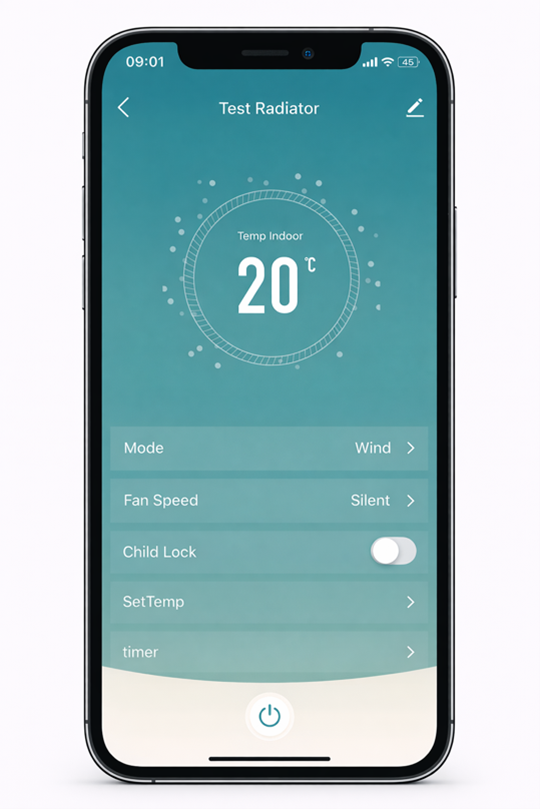

Operating the device
You’ll see: Current temperature (e.g., 20°C), Options (Mode, Fan Speed, Child Lock, SetTemp, Timer), At the bottom: On/Off button
9

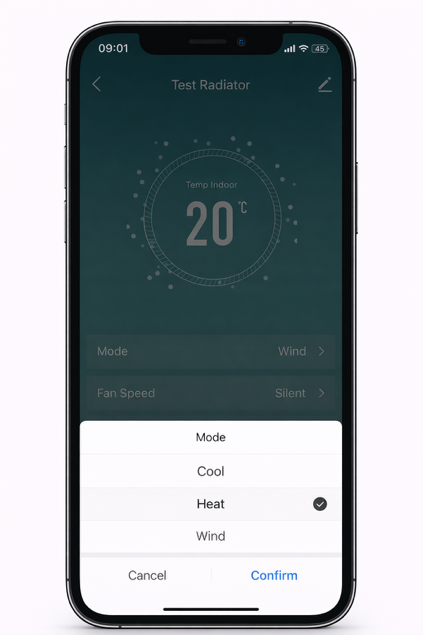

Choose a style
Click on Mode, select: (Heat: heat, Cool: cool, Wind: fan), click Confirm
10

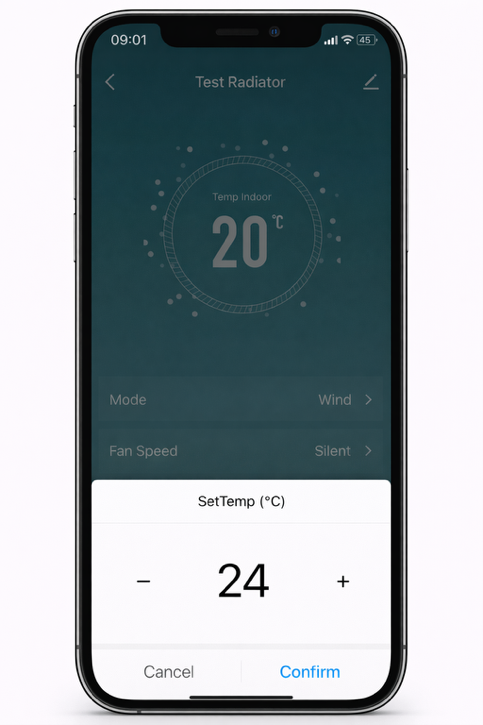

Set the temperature
Click SetTemp, set the temperature (e.g., 24°C), then click Confirm
11

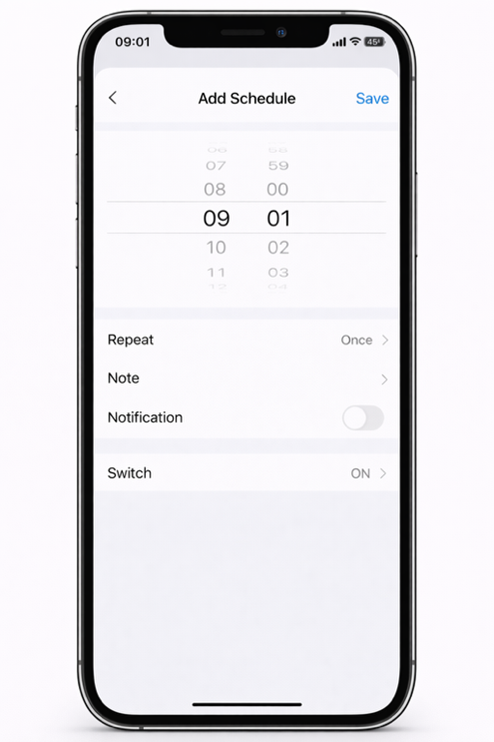

Set up a schedule
You can set the following: Click “Timer”, click “Add”, Time (e.g., 09:01), Repeat: daily or once, Switch: ON/OFF, Notification: optionall
Other home automation apps
Yesncer radiators use open standards and are compatible with, among others:
Amazon Alexa
Google Home
Home Assistant
Home Assistant Green
